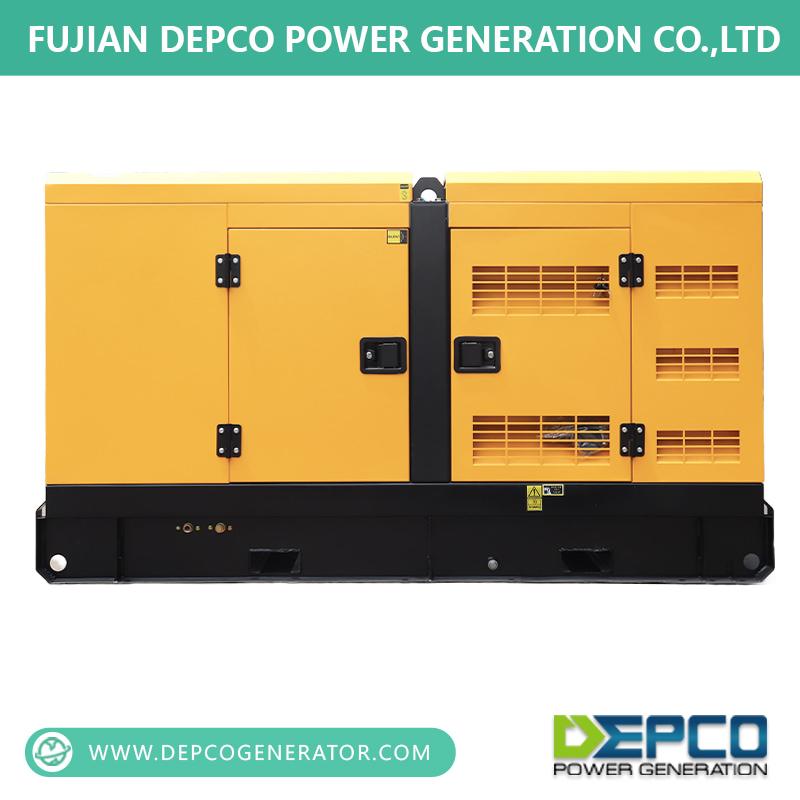

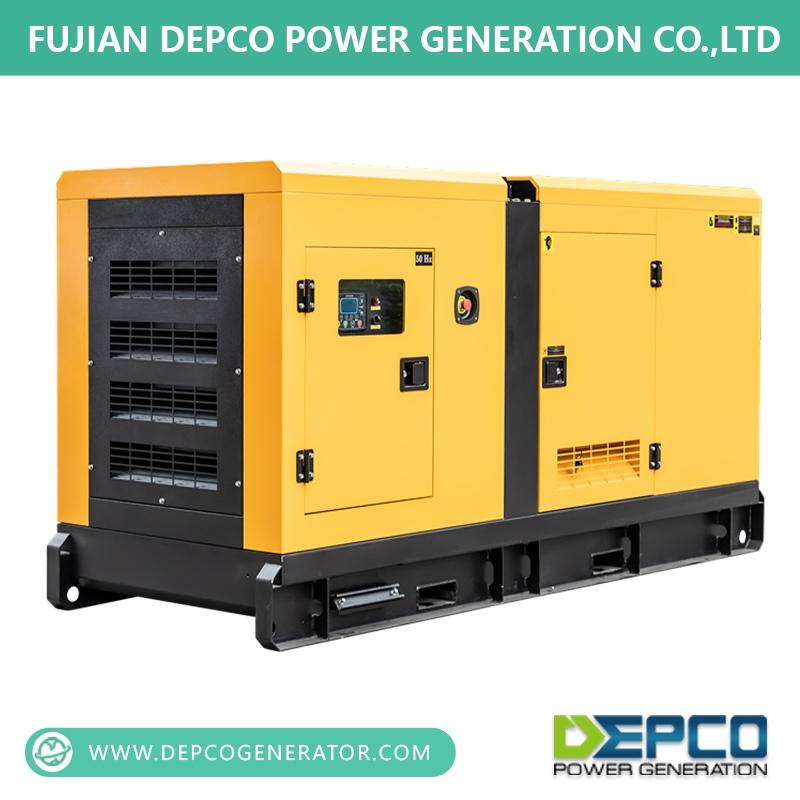

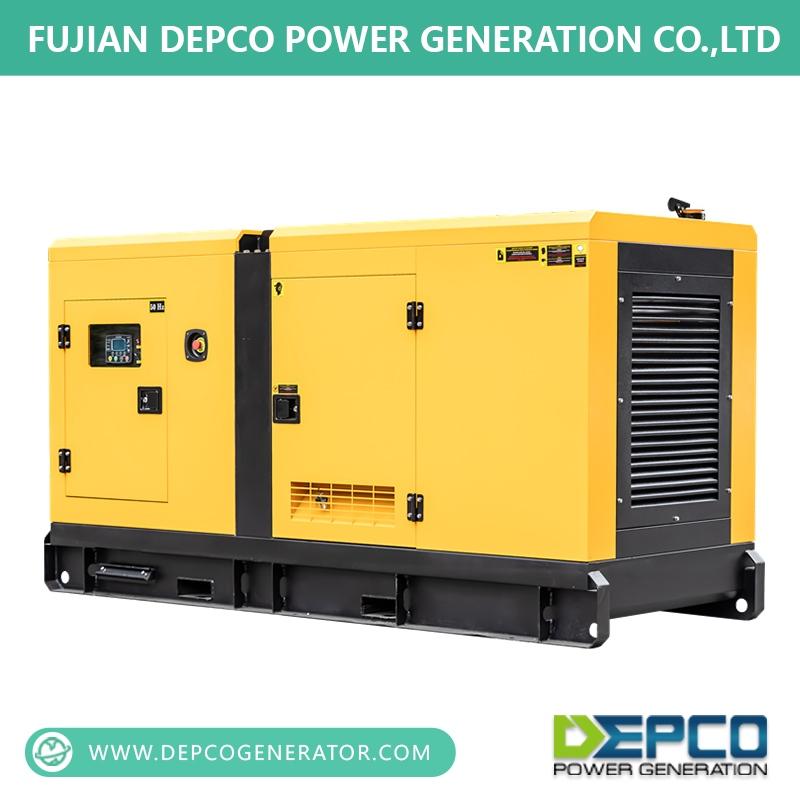

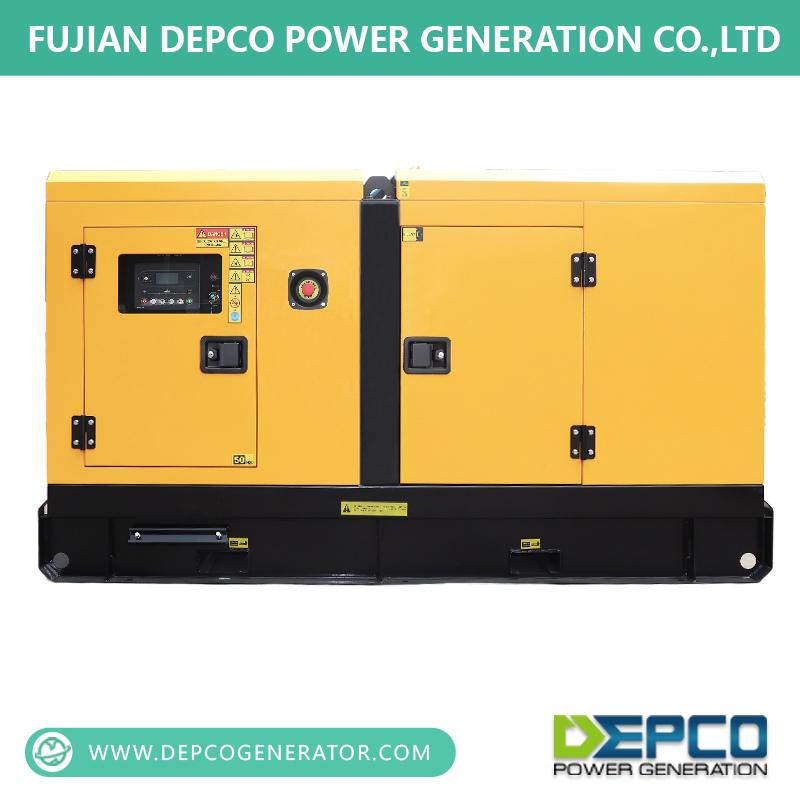

Baudouin Ranges 250 kVA 60Hz Diesel Generator
Brand:
Depco PowerItem NO.:
DPK-DB-250Frequency(Hz):
60Phase:
3Voltage(V):
440Engine:
BaudouinEngine Model:
6M16G200/6PRP (kW):
180PRP (kVA):
225ESP (kW):
200ESP (kVA):
250Arrangement:
6LGovernor:
ElectricalSilent 200kw/250kva Baudouin Diesel Generator 6M16G200/6
Product Introduce:
Baudouin diesel generator is one of the world top famous engines and widely acceptable all over the world.
We have all series from 20kva to 4500kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
Advantage of our Kubota diesel generator :
DP1 model canopy diesel generator uses high-quality materials and precision manufacturing processes to provide good durability and long-term stability. No matter in high temperature, low temperature, humidity or harsh environment, the DP1 model canopy diesel generator can maintain stable performance and operate reliably for a long time.
1: Has a very compact structure which takes up less space and is suitable for installation and operation in limited space.
2: Uses advanced noise reduction technology to reduce the noise level during operation and reduce interference to the surrounding environment and personnel.
3: Easy to maintain because it has a simple design, which will reduce downtime and repair costs, and increase the availability and service life of the equipment.
4: Canopies are treated by a special process, which can maintain bright colors without rusting for a longer period time. The wear resistance and corrosion resistance are significantly improved, which ensures the integrity and functionality of the equipment.
5: Adopts a chassis forklift foot design, making it easy to move and transport.
6: High safety, using a circuit breaker that complies with the CE mark and equipped with an emergency stop button. In the event of a malfunction or automatic engine shutdown, a warning light will appear on the display screen.
Product Parameters:
Details Generator Set | GenSet Model | DPK-DB-250 | Type | Silent |
Frequency (Hz) | 60 | Speed (rpm) | 1800 | |
Phase | 3 | Rated voltage | 440V | |
Prime output | 180kW/225kVA | Standby output | 200kW/250kVA | |
Cylinder | 6 | Cooling system | Water | |
N.W (kg) | 2700 | Size (L*W*H)mm | 3350*1100*1800 | |
Fuel Con.(L/H) | 42.7 | Fuel capacity tank | 300 L | |
Running time (H) | 8 | Sound decibel | 70DB-75DB | |
Details Engine | Brand | Baudouin | ||
Model | 6M16G200/6 | Fuel | Diesel | |
Cylinder | 6 | Cooling system | Water-cooling | |
Cylider arrangemant | IN-LINE | Bore and Stroke(mm) | 126 X 130 | |
Cyle | 4 Staoke | Compression ratio | 17.0:1 | |
Governor | Electrical | Displacement(L) | 9.726 | |
Details Alternator | Brand | Depco, Stamford, Leroy Somer | ||
Model | DPC274J/ UCI274H/ TAL-A46-C/ LSA 46.3 S4 | |||
No.of bearings | 1 | Insulation class | H | |
Wires | 12 | Ingress protection | IP23 | |
Excitation system | Shunt | Volrage | ±1% |
