Baudouin Ranges 385kVA Diesel Generator

Home W Diesel Generators

Baudouin Ranges 385kVA Diesel Generator

Baudouin Ranges 385kVA Diesel Generator

Baudouin 6M21G385/5 Diesel Generator is a generator set known for its reliability, efficiency and durability.
  • Brand:

    Depco Power
  • Item NO.:

    DPK-DB-385
  • Frequency(Hz):

    50
  • Phase:

    3
  • Voltage(V):

    380
  • Engine:

    Baudouin
  • Engine Model:

    6M21G385/5
  • PRP (kW):

    280
  • PRP (kVA):

    350
  • ESP (kW):

    308
  • ESP (kVA):

    385
  • Arrangement:

    6L
  • Governor:

    Electrical
  • Product Description
  • Product Details

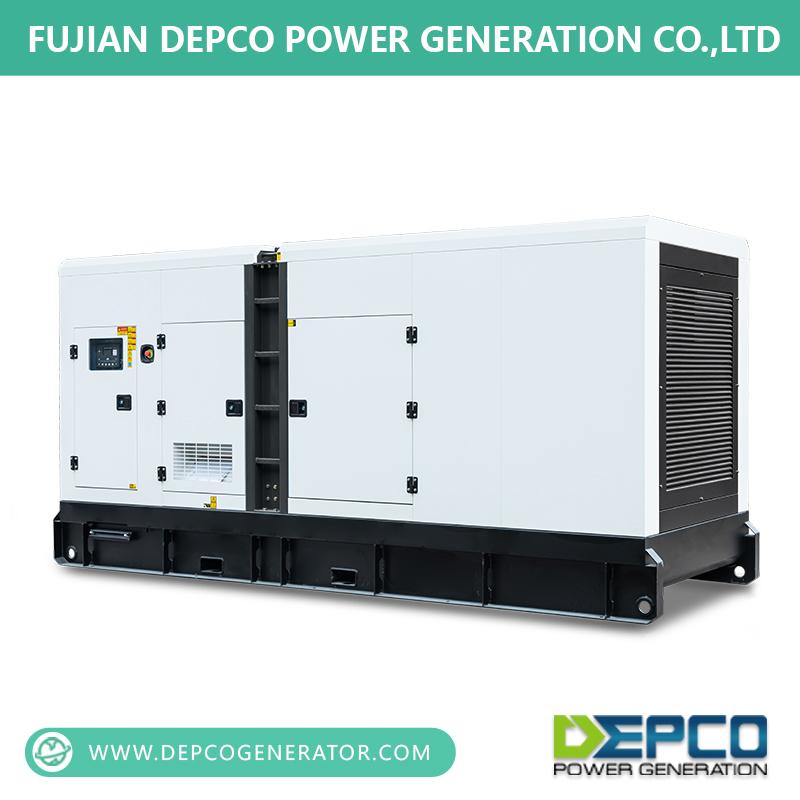

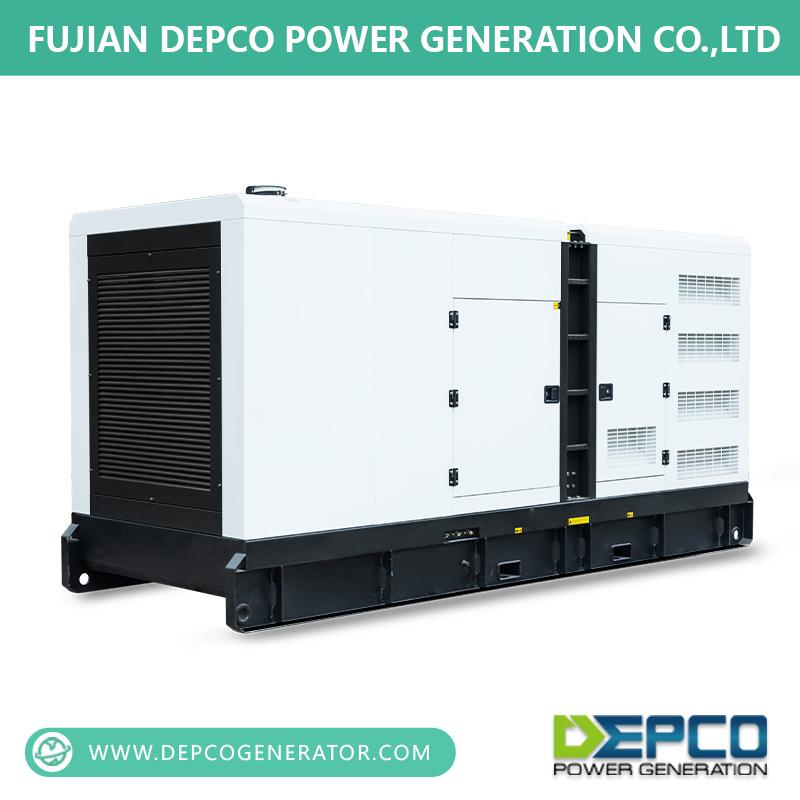

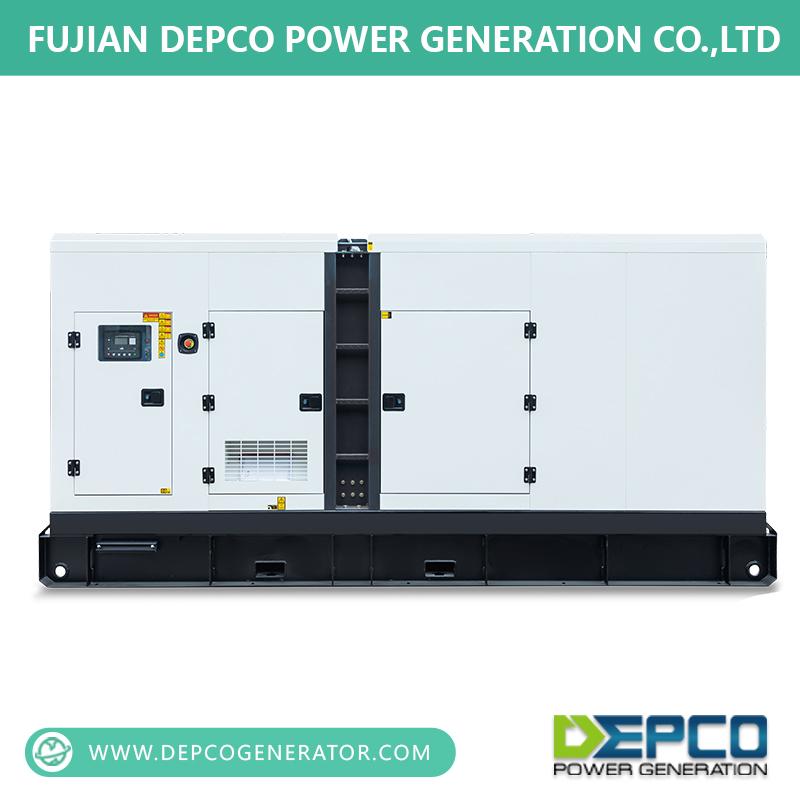

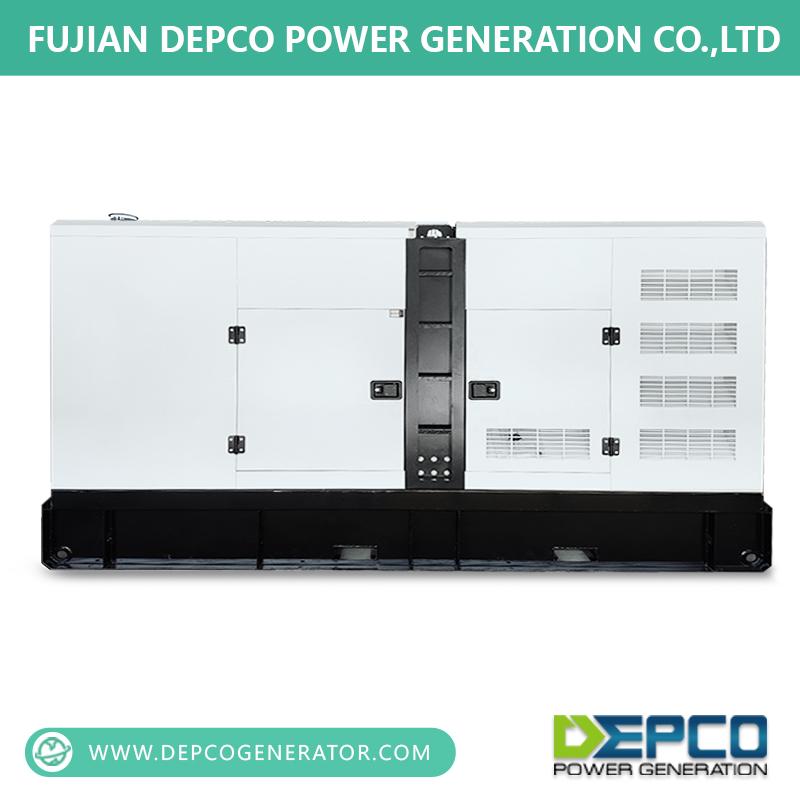

Silent 308kw/385kva Baudouin Diesel Generator 6M21G385/5



Product Introduce:

Baudouin diesel generator is one of the world top famous engines and widely acceptable all over the world.

We have all series from 20kva to 3300kva.



Application fields:

Diesel generator  are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.

For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.



Advantage of our Baudouin diesel generator :



DP1 model canopy diesel generator uses high-quality materials and precision manufacturing processes to provide good durability and long-term stability. No matter in high temperature, low temperature, humidity or harsh environment, the DP1 model canopy diesel generator can maintain stable performance and operate reliably for a long time.

1: Has a very compact structure which takes up less space and is suitable for installation and operation in limited space.

2: Uses advanced noise reduction technology to reduce the noise level during operation and reduce interference to the surrounding environment and personnel.

3: Easy to maintain because it has a simple design, which will reduce downtime and repair costs, and increase the availability and service life of the equipment.

4: Canopies are treated by a special process, which can maintain bright colors without rusting for a longer period time. The wear resistance and corrosion resistance are significantly improved, which ensures the integrity and functionality of the equipment.

5: Adopts a chassis forklift foot design, making it easy to move and transport.

6: High safety, using a circuit breaker that complies with the CE mark and equipped with an emergency stop button. In the event of a malfunction or automatic engine shutdown, a warning light will appear on the display screen.

Product Parameters:







Details Generator Set GenSet Model DPK-DB-385 Type Silent
Frequency (Hz) 50 Speed (rpm) 1500
Phase 3 Rated voltage 380V
Prime output 280kW/350kVA Standby output 308kW/385kVA
Cylinder 6 Cooling system Water
N.W (kg) 4020 Size (L*W*H)mm 3900*1350*2150
Fuel Con.(L/H) 85.5 Fuel capacity tank 550 L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Baudouin
Model 6M21G385/5 Fuel Diesel
Cylinder 6 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 127 X 165
Cyle 4 Staoke Compression ratio 16.0:1
Governor Electrical Displacement(L) 12.54
Details Alternator Brand Depco, Stamford, Leroy Somer
Model DPC314F/ S4L1D-E4/ TAL-A46-H/ LSA 46.3 L11
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
