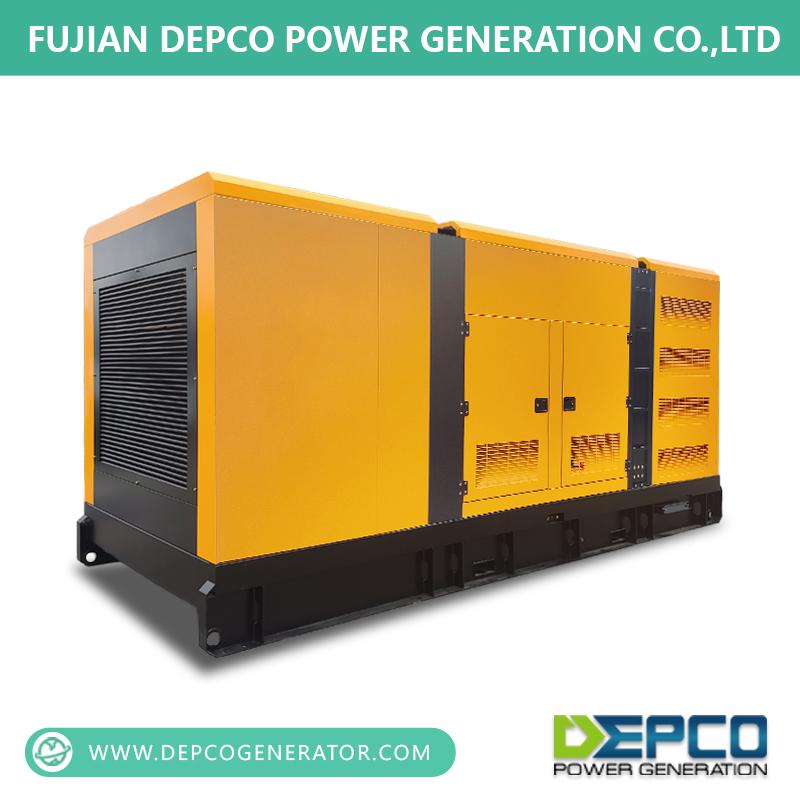

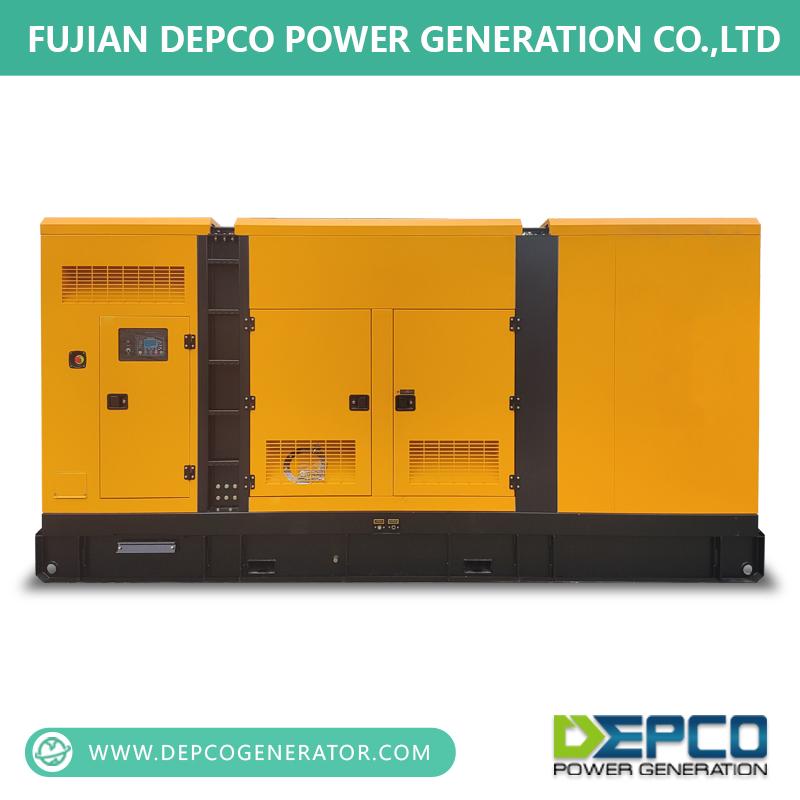

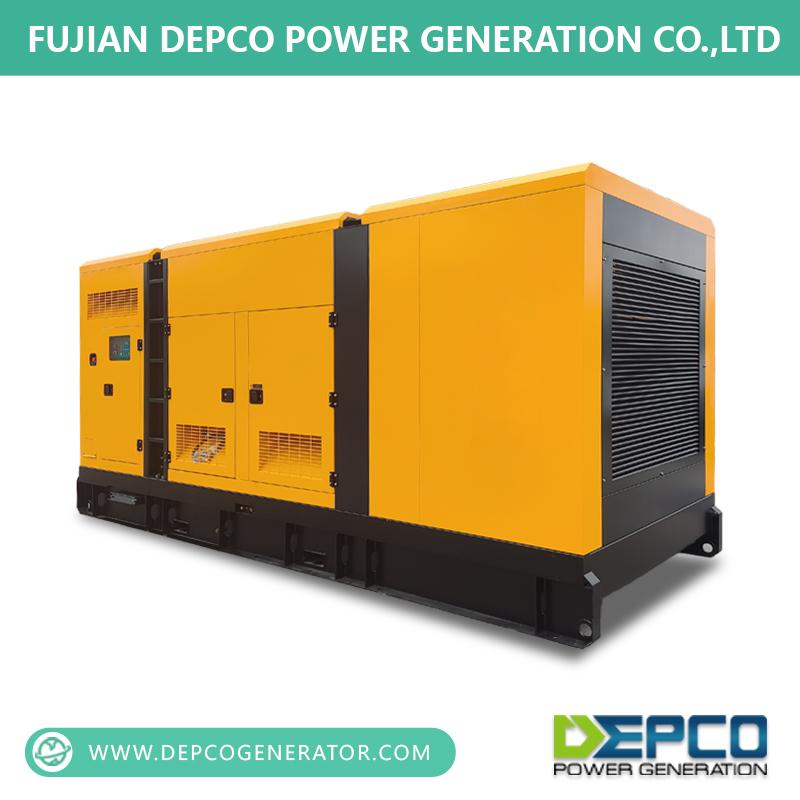

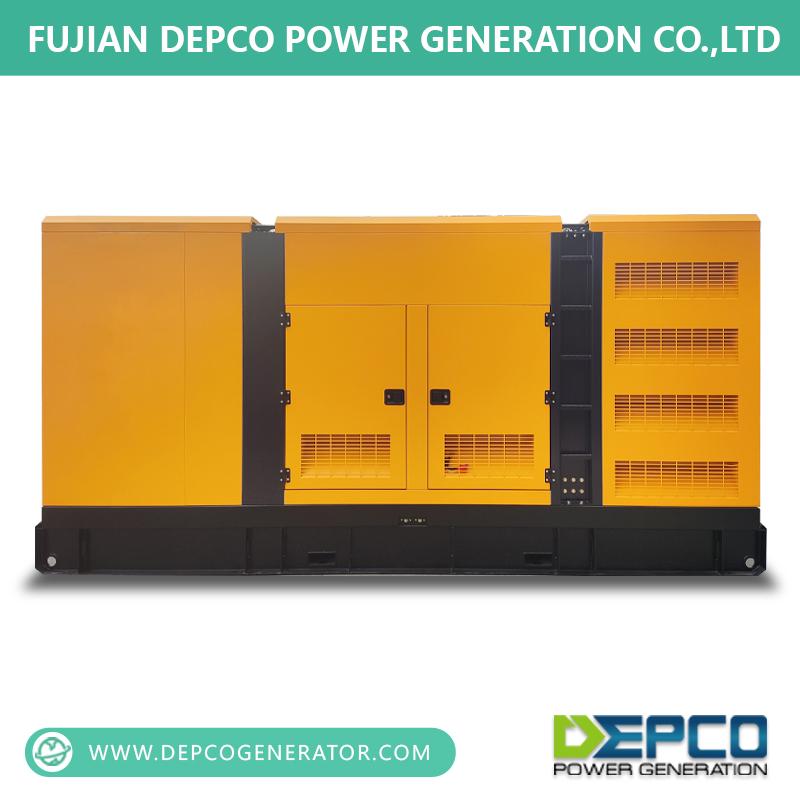

Baudouin Ranges 500kVA Diesel Generator
Brand:
Depco PowerItem NO.:
DPK-DB-500Frequency(Hz):
50Phase:
3Voltage(V):
380Engine:
BaudouinEngine Model:
6M21G500/5PRP (kW):
360PRP (kVA):
450ESP (kW):
400ESP (kVA):
500Arrangement:
6LGovernor:
ElectricalSilent 400kw/500kva Baudouin Diesel Generator 6M21G500/5
Product Introduce:
Baudouin diesel generator is one of the world top famous engines and widely acceptable all over the world.
We have all series from 20kva to 3300kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
Advantage of our Baudouin diesel generator :
DP1 model canopy diesel generator uses high-quality materials and precision manufacturing processes to provide good durability and long-term stability. No matter in high temperature, low temperature, humidity or harsh environment, the DP1 model canopy diesel generator can maintain stable performance and operate reliably for a long time.
1: Has a very compact structure which takes up less space and is suitable for installation and operation in limited space.
2: Uses advanced noise reduction technology to reduce the noise level during operation and reduce interference to the surrounding environment and personnel.
3: Easy to maintain because it has a simple design, which will reduce downtime and repair costs, and increase the availability and service life of the equipment.
4: Canopies are treated by a special process, which can maintain bright colors without rusting for a longer period time. The wear resistance and corrosion resistance are significantly improved, which ensures the integrity and functionality of the equipment.
5: Adopts a chassis forklift foot design, making it easy to move and transport.
6: High safety, using a circuit breaker that complies with the CE mark and equipped with an emergency stop button. In the event of a malfunction or automatic engine shutdown, a warning light will appear on the display screen.
Product Parameters:
Details Generator Set | GenSet Model | DPK-DB-500 | Type | Silent |
Frequency (Hz) | 50 | Speed (rpm) | 1500 | |
Phase | 3 | Rated voltage | 380V | |
Prime output | 360kW/450kVA | Standby output | 400kW/500kVA | |
Cylinder | 6 | Cooling system | Water | |
N.W (kg) | 6430 | Size (L*W*H)mm | 4900*2000*2450 | |
Fuel Con.(L/H) | Fuel capacity tank | 900 L | ||
Running time (H) | 8 | Sound decibel | 70DB-75DB | |
Details Engine | Brand | Baudouin | ||
Model | 6M21G500/5 | Fuel | Diesel | |
Cylinder | 6 | Cooling system | Water-cooling | |
Cylider arrangemant | IN-LINE | Bore and Stroke(mm) | 127 X 165 | |
Cyle | 4 Staoke | Compression ratio | 16.0:1 | |
Governor | Electrical | Displacement(L) | 12.54 | |
Details Alternator | Brand | Depco, Stamford, Leroy Somer | ||
Model | DPC354C/ S5L1D-C4/ TAL-A473-B/ LSA 47.3 S5 | |||
No.of bearings | 1 | Insulation class | H | |
Wires | 12 | Ingress protection | IP23 | |
Excitation system | Shunt | Volrage | ±1% |
