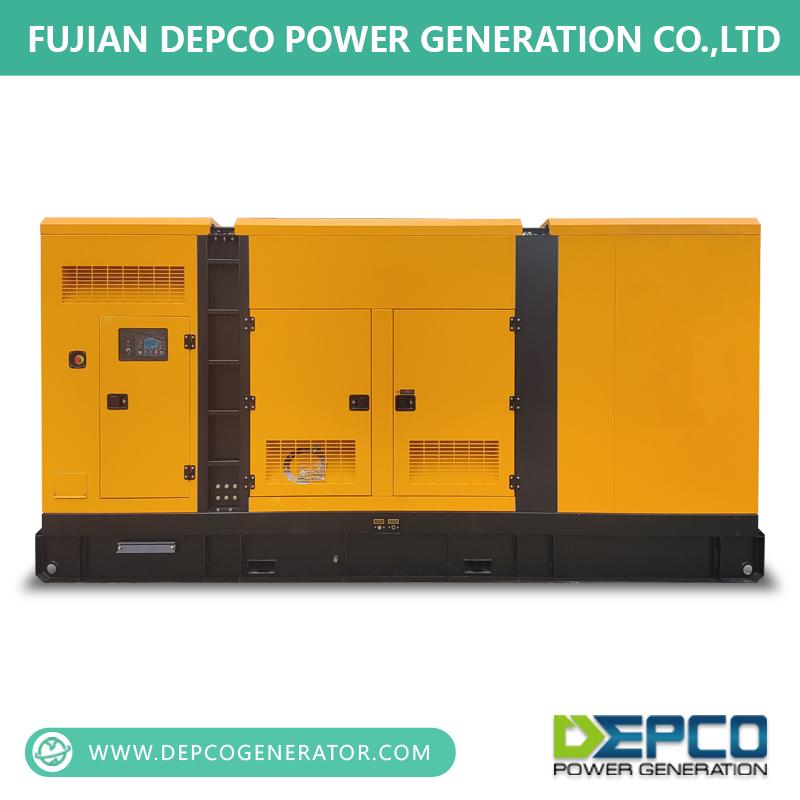

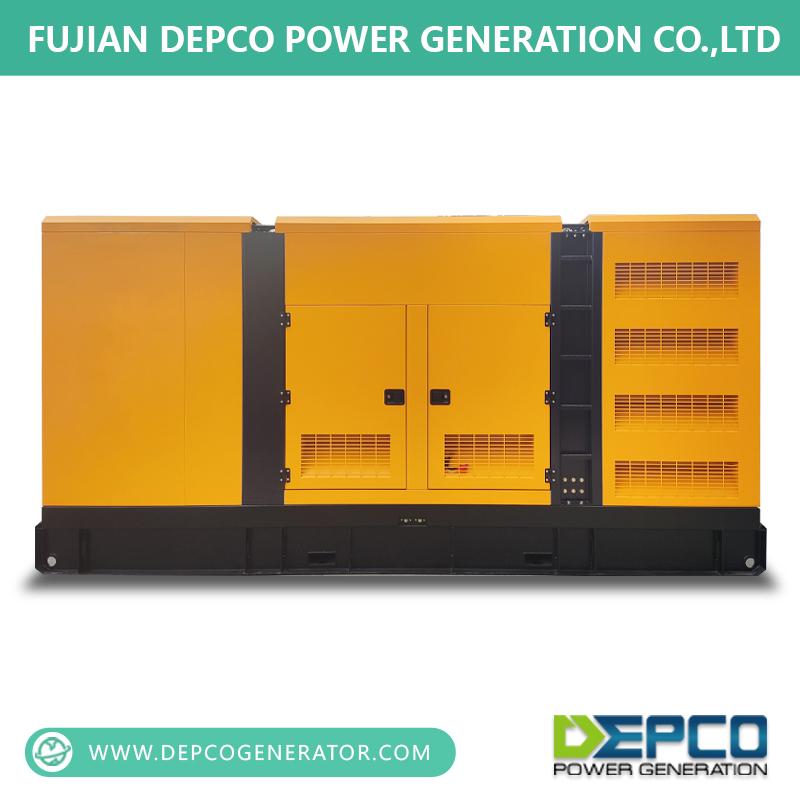

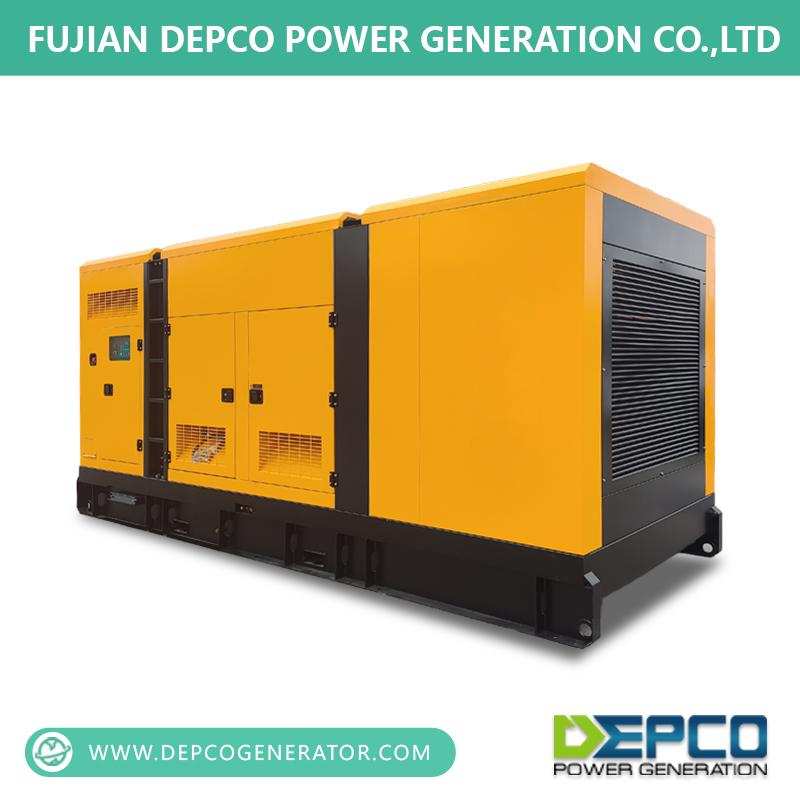

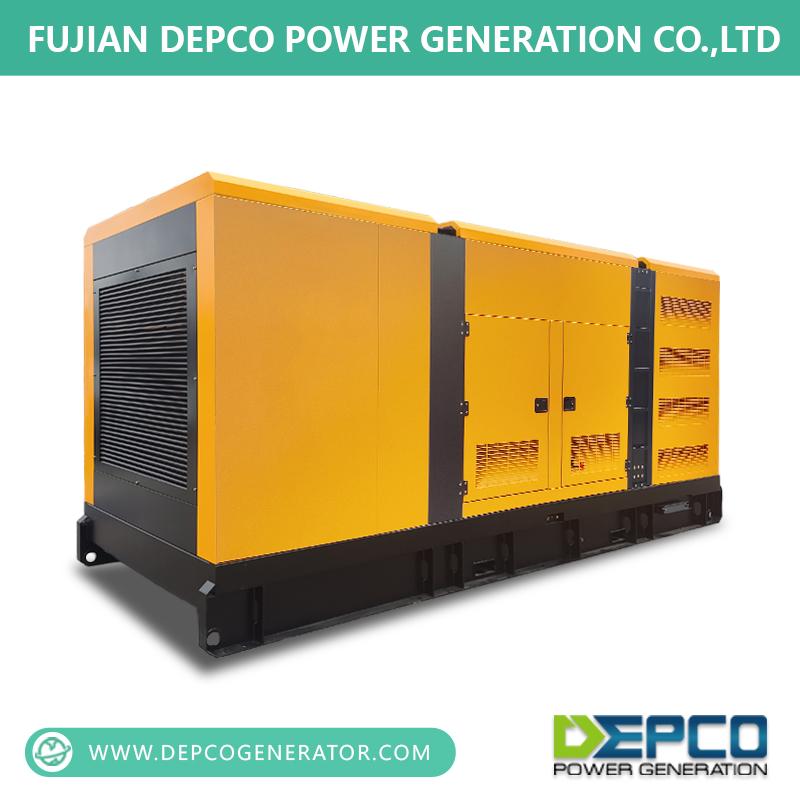

Baudouin Ranges 800 kW 60Hz Diesel Generator
Brand:
Depco PowerItem NO.:
DPK-DB-1000Frequency(Hz):
60Phase:
3Voltage(V):
440Engine:
BaudouinEngine Model:
8M33G800/6PRP (kW):
720PRP (kVA):
900ESP (kW):
800ESP (kVA):
1000Arrangement:
V8Governor:
ElectricalSilent 800kw/1000kva Baudouin Diesel Generator 8M33G800/6
Product Introduce:
Baudouin diesel generator is one of the world top famous engines and widely acceptable all over the world.
We have all series from 20kva to 4500kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
Advantage of our Kubota diesel generator :
DP1 model canopy diesel generator uses high-quality materials and precision manufacturing processes to provide good durability and long-term stability. No matter in high temperature, low temperature, humidity or harsh environment, the DP1 model canopy diesel generator can maintain stable performance and operate reliably for a long time.
1: Has a very compact structure which takes up less space and is suitable for installation and operation in limited space.
2: Uses advanced noise reduction technology to reduce the noise level during operation and reduce interference to the surrounding environment and personnel.
3: Easy to maintain because it has a simple design, which will reduce downtime and repair costs, and increase the availability and service life of the equipment.
4: Canopies are treated by a special process, which can maintain bright colors without rusting for a longer period time. The wear resistance and corrosion resistance are significantly improved, which ensures the integrity and functionality of the equipment.
5: Adopts a chassis forklift foot design, making it easy to move and transport.
6: High safety, using a circuit breaker that complies with the CE mark and equipped with an emergency stop button. In the event of a malfunction or automatic engine shutdown, a warning light will appear on the display screen.
Product Parameters:
Details Generator Set | GenSet Model | DPK-DB-1000 | Type | Silent |
Frequency (Hz) | 60 | Speed (rpm) | 1800 | |
Phase | 3 | Rated voltage | 440V | |
Prime output | 720kW/900kVA | Standby output | 800kW/1000kVA | |
Cylinder | 8 | Cooling system | Water | |
N.W (kg) | 9300 | Size (L*W*H)mm | 5600*2200*2520 | |
Fuel Con.(L/H) | 187.37 | Fuel capacity tank | 1000 L | |
Running time (H) | 8 | Sound decibel | 70DB-75DB | |
Details Engine | Brand | Baudouin | ||
Model | 8M33G800/6 | Fuel | Diesel | |
Cylinder | 8 | Cooling system | Water-cooling | |
Cylider arrangemant | IN-LINE | Bore and Stroke(mm) | 150 X 150 | |
Cyle | 4 Staoke | Compression ratio | 15.7:1 | |
Governor | Electrical | Displacement(L) | 31.8 | |
Details Alternator | Brand | Depco, Stamford, Leroy Somer | ||
Model | DPC404E/ S6L1D-C/ TAL-A49-C/ LSA 49.3 M8 | |||
No.of bearings | 1 | Insulation class | H | |
Wires | 12 | Ingress protection | IP23 | |
Excitation system | Shunt | Volrage | ±1% |
