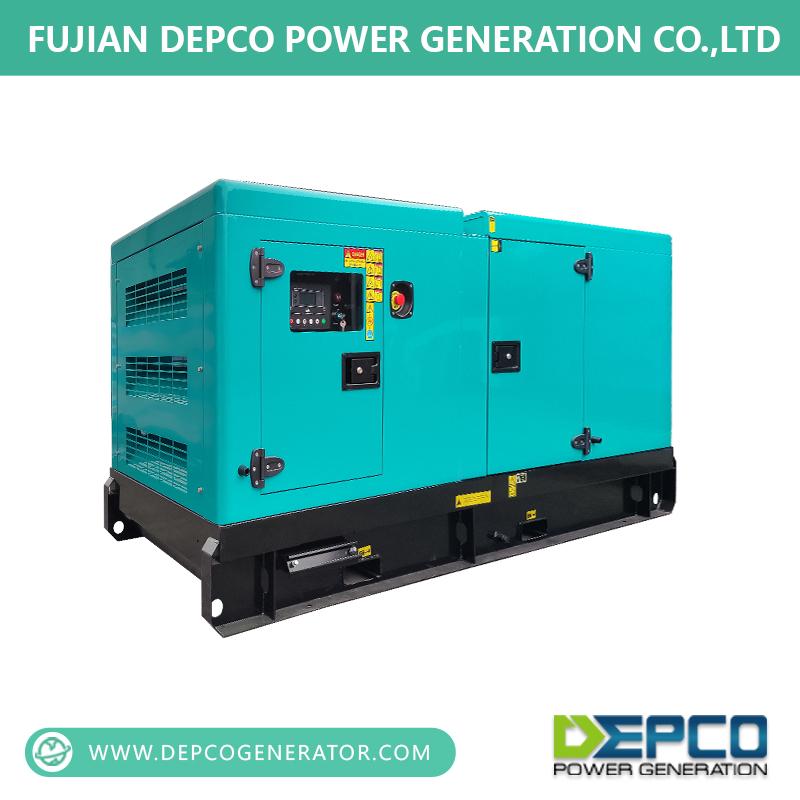

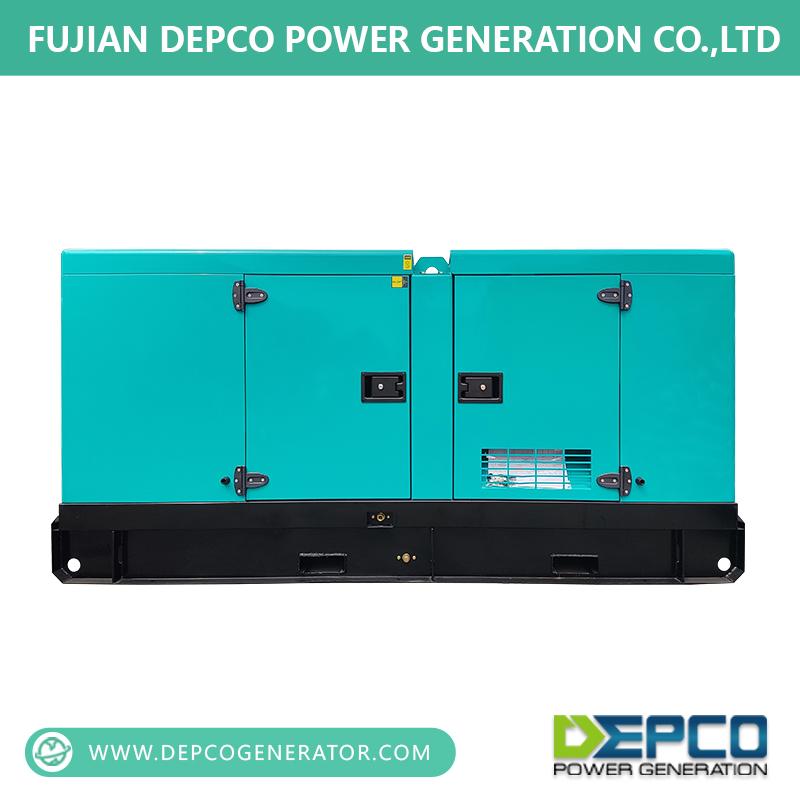

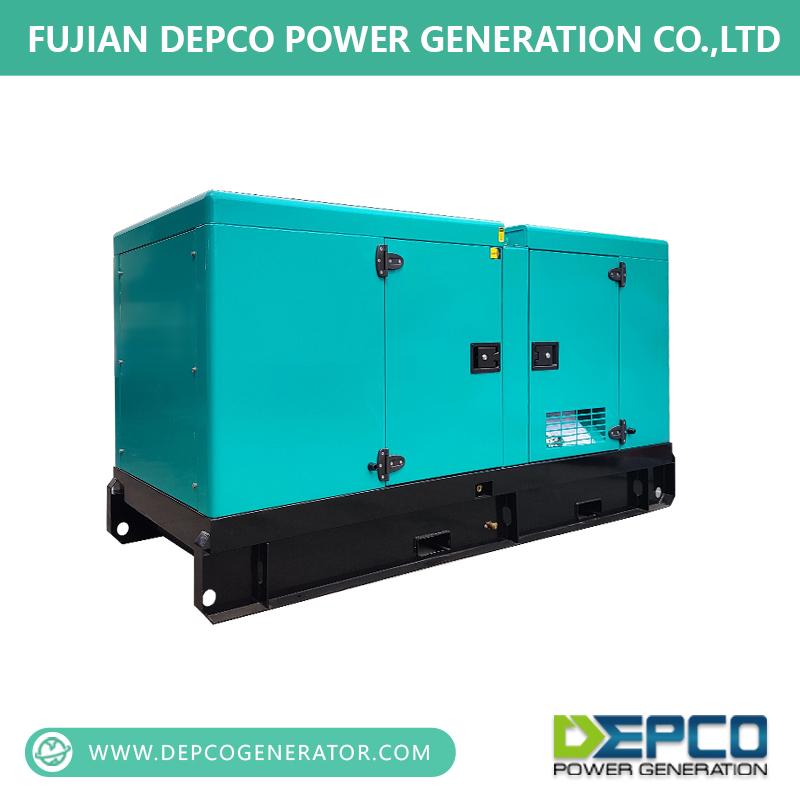

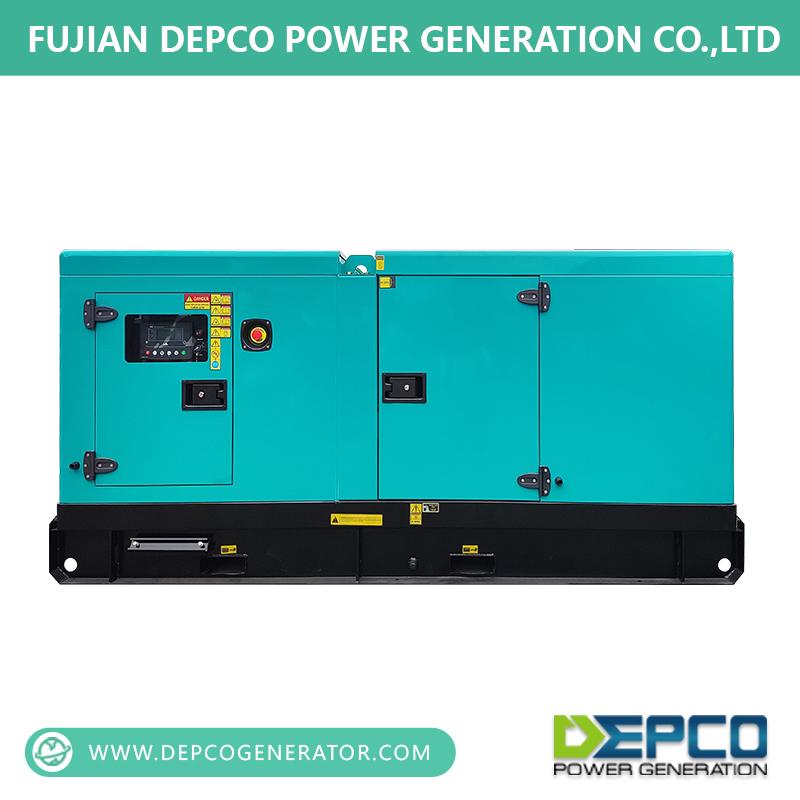

Mitsubishi Ranges 17 kVA Diesel Generator
Brand:
Depco PowerItem NO.:
DPK-DM-16Frequency(Hz):
50Phase:
3Voltage(V):
380Engine:
MitsubishiEngine Model:
S4L2PRP (kW):
12PRP (kVA):
15ESP (kW):
13ESP (kVA):
17Arrangement:
4LGovernor:
MechanicalSilent 13kw/17kva Mitsubishi Diesel Generator S4L2
Product Introduce:
Mitsubishi diesel generator is one of the world top famous engines and widely acceptable all over the world.
We have all series from 17kva to 3788kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
Advantage of our Mitsubishi diesel generator :
The power range of SW type ultra-quiet unit covers 13-800kVA, and the noise level is higher than standard model designs.
1:The air inlet channel adopts directional design;
2:Extend the exhaust channel to reduce noise;
3:Equipped with resistance and resistance composite muffler;
4:Exhaust system
Exhaust hose connection design absorbs vibration of exhaust system components.
Equipped with an impedance and resistance composite high-efficiency silencer, reducing noise.
Optimize the direction of the exhaust pipe to achieve noise reduction.
Product Parameters:
Details Generator Set | GenSet Model | DPK-DM-16 | Type | Silent |
Frequency (Hz) | 50 | Speed (rpm) | 1500 | |
Phase | 3 | Rated voltage | 380V | |
Prime output | 12kW/15kVA | Standby output | 13kW/17kVA | |
Cylinder | 4 | Cooling system | Water | |
N.W (kg) | 459 | Size (L*W*H)mm | 1650*740*940 | |
Fuel Con.(L/H) | 4.28 | Fuel capacity tank | 56 L | |
Running time (H) | 8 | Sound decibel | 70DB-75DB | |
Details Engine | Brand | Mitsubishi | ||
Model | S4L2 | Fuel | Diesel | |
Cylinder | 4 | Cooling system | Water-cooling | |
Cylider arrangemant | IN-LINE | Bore and Stroke(mm) | 78 X 92 | |
Cyle | 4 Staoke | Compression ratio | 22.0:1 | |
Governor | Mechanical | Displacement(L) | 1.758 | |
Details Alternator | Brand | Depco, Stamford, Leroy Somer, Mecc Alte | ||
Model | DPC164D/PI 044G/S0L2-F1/TAL-A40-D/LSA 40 S4/ECP28 2S4C | |||
No.of bearings | 1 | Insulation class | H | |
Wires | 12 | Ingress protection | IP23 | |
Excitation system | Shunt | Volrage | ±1% |
